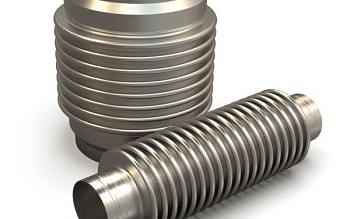

Introduction to Welded Stainless Steel Expansion Bellows
In various industrial applications, managing thermal expansion and contractions in piping systems is crucial for maintaining operational efficiency and equipment integrity. Welded stainless steel expansion bellows are designed to absorb these movements and offer unparalleled flexibility, strength, and reliability.
What Are Welded Stainless Steel Expansion Bellows?
Welded stainless steel expansion bellows are flexible components used in piping and equipment to accommodate thermal expansion, vibrations, and misalignments. These bellows feature a series of convolutions, which allow them to flex and expand under changing temperature conditions. The welded construction enhances their durability and pressure resistance, making them a preferred choice in many high-stress environments.
Key Features and Specifications
Size Range
Our expansion bellows are available in a size range from 40nb to 4000nb (nominal bore), catering to both small and large-scale applications. This extensive range ensures that we can accommodate various piping dimensions across different industries, from plumbing and HVAC systems to heavy industrial processes and chemical facilities.
Temperature Range
One of the standout features of our welded stainless steel expansion bellows is their temperature tolerance, capable of handling temperatures of up to 2000 degree C. This exceptional heat resistance makes them suitable for demanding environments, including power plants, petrochemical facilities, and other industries where high-temperature operations are commonplace.
Pressure Rating
Another critical specification is the pressure rating, which for our expansion bellows stands at 100 bar. This high-pressure tolerance ensures that our bellows can withstand the rigorous conditions of high-pressure pipelines and systems without compromising performance or safety.
Benefits of Using Welded Stainless Steel Expansion Bellows
Flexibility and Movement Accommodation
The primary function of expansion bellows is to absorb thermal expansion and contraction in piping systems. The flexible design allows for significant movement without damaging adjacent equipment or pipes.
Durability and Longevity
Constructed from high-quality stainless steel, our welded bellows are resistant to corrosion, wear, and fatigue. This durability extends the lifespan of the bellows, reducing the need for frequent replacements and maintenance.
Reduced Stress on Equipment
By absorbing movements and vibrations, expansion bellows help reduce stress on connected equipment. This can lead to improved performance, fewer breakdowns, and enhanced safety.
Versatile Applications
With their extensive size range and temperature/pressure capabilities, our welded stainless steel expansion bellows can be employed in various sectors, including aerospace, automotive, food processing, pharmaceuticals, and energy.
Types of Welded Stainless Steel Expansion Bellows
There are several types of welded stainless steel expansion bellows available to meet specific needs and operational conditions:
Convoluted Bellows
These bellows feature a series of convolutions or folds that allow for greater flexibility and movement. They are primarily used in applications requiring significant axial, lateral, and angular movements.
Angular Bellows
Designed to accommodate angular deflections in piping systems, angular bellows provide flexibility at specific angles while maintaining structural integrity.
Universal Bellows
Universal bellows can absorb movements in multiple directions, making them highly versatile. They are typically used in systems where complex movements occur due to thermal expansions or misalignments.
Single and Double Expansion Bellows
Single expansion bellows are used for linear movements, whereas double expansion bellows are designed to manage both linear and angular movements. This allows for more complex applications requiring versatile movement accommodations.
Bellows with Flanges
Some bellows come with flanged ends for easy installation in piping systems. These flanges can be designed to match existing piping dimensions, providing a seamless integration.
Applications of Welded Stainless Steel Expansion Bellows
Welded stainless steel expansion bellows are employed in various industries and applications, such as:
Power Generation: Used in steam pipes, turbines, and exhaust systems to handle thermal expansion from high-temperature processes.
Chemical Processing: Essential for maintaining control in chemical reaction vessels and pipelines, where thermal expansion and pressure fluctuations are common.
Oil and Gas: Applied in upstream and downstream processes, especially in environments with high pressures and temperature variations.
HVAC Systems: Used in heating and cooling systems to accommodate thermal expansion, increasing the service life of equipment.
Food and Beverage Processing: Implemented in hygienic processes where stainless steel?s corrosion resistance and cleanability are critical.
